A cutting tool RFQ checklist for overseas purchasing
A useful request for quotation identifies the exact tool, workpiece, quantity and destination. A missing catalogue price means a quotation is needed; it does not mean the tool is free.

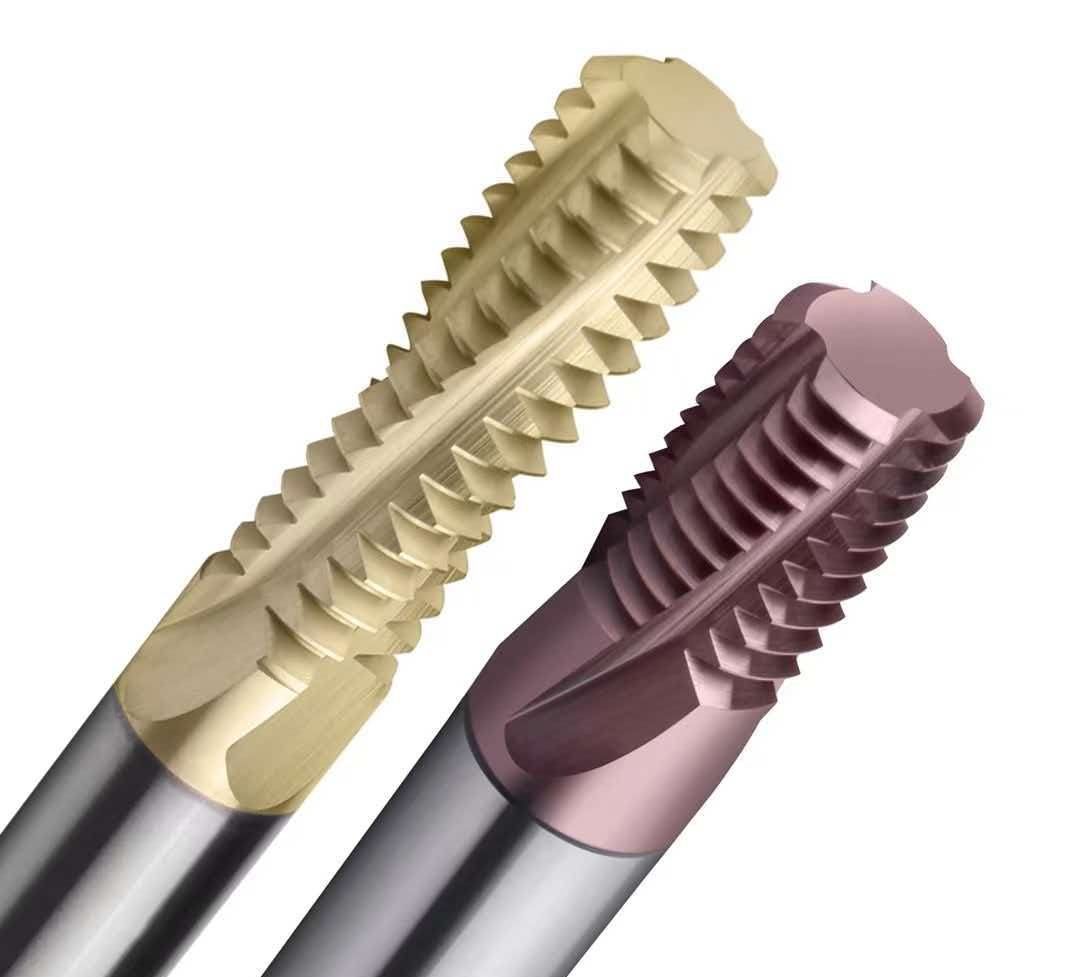

ISO Full-Profile Thread Mill
Series: THREAD96 variants
Price:
From$8.93/ pc
Shipping method: Confirm for your destination
Card payments processed by Stripe
Specifications
| SKU | Cutting diameter | Shank diameter | Unit price | Add to cart | |
|---|---|---|---|---|---|
| ZY-TM03-M3x0.5-d2.4xD4-uncoated-al | 2.4mm | 4mm | In stock | $8.93 | |
| ZY-TM03-M3x0.5-d2.4xD4-rainbow-al | 2.4mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M3x0.5-d2.4xD4-bronze-steel | 2.4mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M3x0.5-d2.4xD4-ad-steel | 2.4mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M3.5x0.6-d2.8xD4-uncoated-al | 2.8mm | 4mm | In stock | $8.93 | |
| ZY-TM03-M3.5x0.6-d2.8xD4-rainbow-al | 2.8mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M3.5x0.6-d2.8xD4-bronze-steel | 2.8mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M3.5x0.6-d2.8xD4-ad-steel | 2.8mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M4x0.5-d3.2xD4-uncoated-al | 3.2mm | 4mm | In stock | $8.93 | |
| ZY-TM03-M4x0.5-d3.2xD4-rainbow-al | 3.2mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M4x0.5-d3.2xD4-bronze-steel | 3.2mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M4x0.5-d3.2xD4-ad-steel | 3.2mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M4x0.7-d3.15xD4-uncoated-al | 3.15mm | 4mm | In stock | $8.93 | |
| ZY-TM03-M4x0.7-d3.15xD4-rainbow-al | 3.15mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M4x0.7-d3.15xD4-bronze-steel | 3.15mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M4x0.7-d3.15xD4-ad-steel | 3.15mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M5x0.5-d3.2xD4-uncoated-al | 3.2mm | 4mm | In stock | $8.93 | |
| ZY-TM03-M5x0.5-d3.2xD4-rainbow-al | 3.2mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M5x0.5-d3.2xD4-bronze-steel | 3.2mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M5x0.5-d3.2xD4-ad-steel | 3.2mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M5x0.8-d3.9xD4-uncoated-al | 3.9mm | 4mm | In stock | $8.93 | |
| ZY-TM03-M5x0.8-d3.9xD4-rainbow-al | 3.9mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M5x0.8-d3.9xD4-bronze-steel | 3.9mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M5x0.8-d3.9xD4-ad-steel | 3.9mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M6x0.75-d3.9xD4-uncoated-al | 3.9mm | 4mm | In stock | $8.93 | |
| ZY-TM03-M6x0.75-d3.9xD4-rainbow-al | 3.9mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M6x0.75-d3.9xD4-bronze-steel | 3.9mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M6x0.75-d3.9xD4-ad-steel | 3.9mm | 4mm | In stock | $9.37 | |
| ZY-TM03-M6x1-d4.8xD6-uncoated-al | 4.8mm | 6mm | In stock | $17.26 | |
| ZY-TM03-M6x1-d4.8xD6-rainbow-al | 4.8mm | 6mm | In stock | $18.00 | |
| ZY-TM03-M6x1-d4.8xD6-bronze-steel | 4.8mm | 6mm | In stock | $18.00 | |
| ZY-TM03-M6x1-d4.8xD6-ad-steel | 4.8mm | 6mm | In stock | $18.00 | |
| ZY-TM03-M8x0.75-d5.9xD6-uncoated-al | 5.9mm | 6mm | In stock | $17.26 | |
| ZY-TM03-M8x0.75-d5.9xD6-rainbow-al | 5.9mm | 6mm | In stock | $18.00 | |
| ZY-TM03-M8x0.75-d5.9xD6-bronze-steel | 5.9mm | 6mm | In stock | $18.00 | |
| ZY-TM03-M8x0.75-d5.9xD6-ad-steel | 5.9mm | 6mm | In stock | $18.00 | |
| ZY-TM03-M8x1.0-d5.9xD6-uncoated-al | 5.9mm | 6mm | In stock | $17.26 | |
| ZY-TM03-M8x1.0-d5.9xD6-rainbow-al | 5.9mm | 6mm | In stock | $18.00 | |
| ZY-TM03-M8x1.0-d5.9xD6-bronze-steel | 5.9mm | 6mm | In stock | $18.00 | |
| ZY-TM03-M8x1.0-d5.9xD6-ad-steel | 5.9mm | 6mm | In stock | $18.00 | |
| ZY-TM03-M8x1.25-d5.9xD6-uncoated-al | 5.9mm | 6mm | In stock | $17.26 | |
| ZY-TM03-M8x1.25-d5.9xD6-rainbow-al | 5.9mm | 6mm | In stock | $18.00 | |
| ZY-TM03-M8x1.25-d5.9xD6-bronze-steel | 5.9mm | 6mm | In stock | $18.00 | |
| ZY-TM03-M8x1.25-d5.9xD6-ad-steel | 5.9mm | 6mm | In stock | $18.00 | |
| ZY-TM03-M8x1-d5.9xD6-uncoated-al | 5.9mm | 6mm | In stock | $17.26 | |
| ZY-TM03-M8x1-d5.9xD6-rainbow-al | 5.9mm | 6mm | In stock | $18.00 | |
| ZY-TM03-M8x1-d5.9xD6-bronze-steel | 5.9mm | 6mm | In stock | $18.00 | |
| ZY-TM03-M8x1-d5.9xD6-ad-steel | 5.9mm | 6mm | In stock | $18.00 | |
| ZY-TM03-M10x1-d7.9xD8-uncoated-al | 7.9mm | 8mm | In stock | $29.75 | |
| ZY-TM03-M10x1-d7.9xD8-rainbow-al | 7.9mm | 8mm | In stock | $30.65 | |
| ZY-TM03-M10x1-d7.9xD8-bronze-steel | 7.9mm | 8mm | In stock | $30.65 | |
| ZY-TM03-M10x1-d7.9xD8-ad-steel | 7.9mm | 8mm | In stock | $30.65 | |
| ZY-TM03-M10x1.25-d7.9xD8-uncoated-al | 7.9mm | 8mm | In stock | $29.75 | |
| ZY-TM03-M10x1.25-d7.9xD8-rainbow-al | 7.9mm | 8mm | In stock | $30.65 | |
| ZY-TM03-M10x1.25-d7.9xD8-bronze-steel | 7.9mm | 8mm | In stock | $30.65 | |
| ZY-TM03-M10x1.25-d7.9xD8-ad-steel | 7.9mm | 8mm | In stock | $30.65 | |
| ZY-TM03-M10x1.5-d7.9xD8-uncoated-al | 7.9mm | 8mm | In stock | $29.75 | |
| ZY-TM03-M10x1.5-d7.9xD8-rainbow-al | 7.9mm | 8mm | In stock | $30.65 | |
| ZY-TM03-M10x1.5-d7.9xD8-bronze-steel | 7.9mm | 8mm | In stock | $30.65 | |
| ZY-TM03-M10x1.5-d7.9xD8-ad-steel | 7.9mm | 8mm | In stock | $30.65 | |
| ZY-TM03-M12x1-d9.9xD10-uncoated-al | 9.9mm | 10mm | In stock | $46.27 | |
| ZY-TM03-M12x1-d9.9xD10-rainbow-al | 9.9mm | 10mm | In stock | $47.31 | |
| ZY-TM03-M12x1-d9.9xD10-bronze-steel | 9.9mm | 10mm | In stock | $47.31 | |
| ZY-TM03-M12x1-d9.9xD10-ad-steel | 9.9mm | 10mm | In stock | $47.31 | |
| ZY-TM03-M12x1.25-d9.9xD10-uncoated-al | 9.9mm | 10mm | In stock | $46.27 | |
| ZY-TM03-M12x1.25-d9.9xD10-rainbow-al | 9.9mm | 10mm | In stock | $47.31 | |
| ZY-TM03-M12x1.25-d9.9xD10-bronze-steel | 9.9mm | 10mm | In stock | $47.31 | |
| ZY-TM03-M12x1.25-d9.9xD10-ad-steel | 9.9mm | 10mm | In stock | $47.31 | |
| ZY-TM03-M12x1.5-d9.9xD10-uncoated-al | 9.9mm | 10mm | In stock | $46.27 | |
| ZY-TM03-M12x1.5-d9.9xD10-rainbow-al | 9.9mm | 10mm | In stock | $47.31 | |
| ZY-TM03-M12x1.5-d9.9xD10-bronze-steel | 9.9mm | 10mm | In stock | $47.31 | |
| ZY-TM03-M12x1.5-d9.9xD10-ad-steel | 9.9mm | 10mm | In stock | $47.31 | |
| ZY-TM03-M12x1.75-d9.9xD10-uncoated-al | 9.9mm | 10mm | In stock | $46.27 | |
| ZY-TM03-M12x1.75-d9.9xD10-rainbow-al | 9.9mm | 10mm | In stock | $47.31 | |
| ZY-TM03-M12x1.75-d9.9xD10-bronze-steel | 9.9mm | 10mm | In stock | $47.31 | |
| ZY-TM03-M12x1.75-d9.9xD10-ad-steel | 9.9mm | 10mm | In stock | $47.31 | |
| ZY-TM03-M14-M16x1.5-d11.9xD12-uncoated-al | 11.9mm | 12mm | In stock | $68.29 | |
| ZY-TM03-M14-M16x1.5-d11.9xD12-rainbow-al | 11.9mm | 12mm | In stock | $69.62 | |
| ZY-TM03-M14-M16x1.5-d11.9xD12-bronze-steel | 11.9mm | 12mm | In stock | $69.62 | |
| ZY-TM03-M14-M16x1.5-d11.9xD12-ad-steel | 11.9mm | 12mm | In stock | $69.62 | |
| ZY-TM03-M14-M16x2-d11.6xD12-uncoated-al | 11.6mm | 12mm | In stock | $68.29 | |
| ZY-TM03-M14-M16x2-d11.6xD12-rainbow-al | 11.6mm | 12mm | In stock | $69.62 | |
| ZY-TM03-M14-M16x2-d11.6xD12-bronze-steel | 11.6mm | 12mm | In stock | $69.62 | |
| ZY-TM03-M14-M16x2-d11.6xD12-ad-steel | 11.6mm | 12mm | In stock | $69.62 | |
| ZY-TM03-M18-M22x1.5-d13.9-D14-uncoated-al | 13.9mm | 14mm | In stock | $103.54 | |
| ZY-TM03-M18-M22x1.5-d13.9-D14-rainbow-al | 13.9mm | 14mm | In stock | $104.88 | |
| ZY-TM03-M18-M22x1.5-d13.9-D14-bronze-steel | 13.9mm | 14mm | In stock | $104.88 | |
| ZY-TM03-M18-M22x1.5-d13.9-D14-ad-steel | 13.9mm | 14mm | In stock | $104.88 | |
| ZY-TM03-M18-M22x2.5-d13.9-D14-uncoated-al | 13.9mm | 14mm | In stock | $103.54 | |
| ZY-TM03-M18-M22x2.5-d13.9-D14-rainbow-al | 13.9mm | 14mm | In stock | $104.88 | |
| ZY-TM03-M18-M22x2.5-d13.9-D14-bronze-steel | 13.9mm | 14mm | In stock | $104.88 | |
| ZY-TM03-M18-M22x2.5-d13.9-D14-ad-steel | 13.9mm | 14mm | In stock | $104.88 | |
| ZY-TM03-M24x3-d15.9xD16-uncoated-al | 15.9mm | 16mm | In stock | $152.04 | |
| ZY-TM03-M24x3-d15.9xD16-rainbow-al | 15.9mm | 16mm | In stock | $153.68 | |
| ZY-TM03-M24x3-d15.9xD16-bronze-steel | 15.9mm | 16mm | In stock | $153.68 | |
| ZY-TM03-M24x3-d15.9xD16-ad-steel | 15.9mm | 16mm | In stock | $153.68 |
Description
ISO Full-Profile Thread Mill. Solid carbide; one tool covers multiple pitches and removes the risk of tap breakage. Coatings are matched to aluminium or steel.
Reviews (0)
—/ 5
Based on 0 reviews
50
40
30
20
10
No reviews yet.
Sign in · Sign in to write a review.
Specification and purchasing checklist
- Cutting diameter
- 2.4–15.9 mm
- Shank diameter
- 4–16 mm
Ranges summarize the variants on this page; they do not imply every combination is available. Check dimensions, quantity and material application for the exact SKU. Confirm unspecified tolerances, assembly compatibility and cutting data before ordering.
