How to compare carbide end mill dimensions before ordering
Match the workpiece, cutting profile and usable reach first. Then compare cutting diameter, shank diameter, flute length and overall length for the exact SKU.
HRC65 Nano-Blue Flat End Mill
Series: HRC65Hardness: ≤ HRC658 variants
Price:
From$5.36/ pc
Shipping method: Confirm for your destination
Card payments processed by Stripe
Specifications
| SKU | Cutting diameter | Shank diameter | Flute length | Overall length | Helix angle | Flutes | Unit price | Add to cart | |
|---|---|---|---|---|---|---|---|---|---|
| ZY-HP-1x3xD4x50L-4T | 1mm | 4mm | 3mm | 50mm | 40° | 4 | In stock | $5.36 | |
| ZY-HP-1.5x4xD4x50L-4T | 1.5mm | 4mm | 4mm | 50mm | 40° | 4 | In stock | $5.36 | |
| ZY-HP-2x6xD4x50L-4T | 2mm | 4mm | 6mm | 50mm | 40° | 4 | In stock | $5.36 | |
| ZY-HP-3x8xD4x50L-4T | 3mm | 4mm | 8mm | 50mm | 40° | 4 | In stock | $5.36 | |
| ZY-HP-4x11xD4x50L-4T | 4mm | 4mm | 11mm | 50mm | 40° | 4 | In stock | $5.36 | |
| ZY-HP-6x16xD6x50L-4T | 6mm | 6mm | 16mm | 50mm | 40° | 4 | In stock | $11.29 | |
| ZY-HP-8x20xD8x60L-4T | 8mm | 8mm | 20mm | 60mm | 40° | 4 | In stock | $20.83 | |
| ZY-HP-10x25xD10x75L-4T | 10mm | 10mm | 25mm | 75mm | 40° | 4 | In stock | $39.39 |
Description

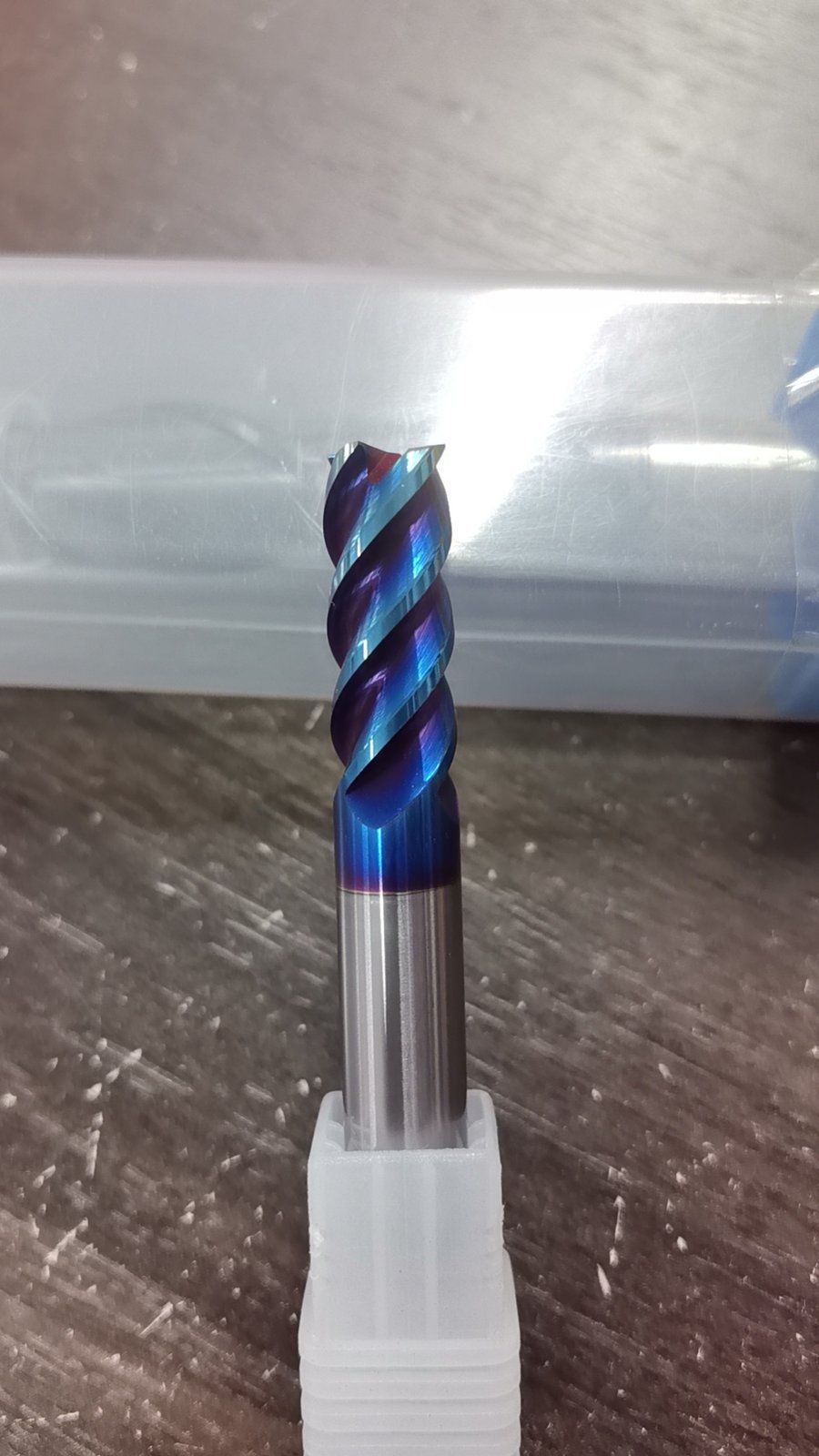

Zhuyi HRC65 nano-blue coated carbide end mill on a fine-grain carbide substrate with high wear resistance and strength, built for high-speed cutting of hard materials. Takes materials below HRC65 from roughing through to finishing in one tool, cutting tool changes and raising machine utilisation. Suitable for A3, S45C, S50C, 40Cr, 42CrMo, 20Cr, Cr12, H13, NAK80, 718 and other mould steels.
Reviews (0)
—/ 5
Based on 0 reviews
50
40
30
20
10
No reviews yet.
Sign in · Sign in to write a review.
Specification and purchasing checklist
- Cutting diameter
- 1–10 mm
- Shank diameter
- 4–10 mm
- Flute length
- 3–25 mm
- Overall length
- 50–75 mm
- Helix angle
- 40 °
- Flutes
- 4
Ranges summarize the variants on this page; they do not imply every combination is available. Check dimensions, quantity and material application for the exact SKU. Confirm unspecified tolerances, assembly compatibility and cutting data before ordering.
